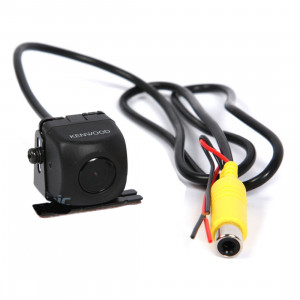

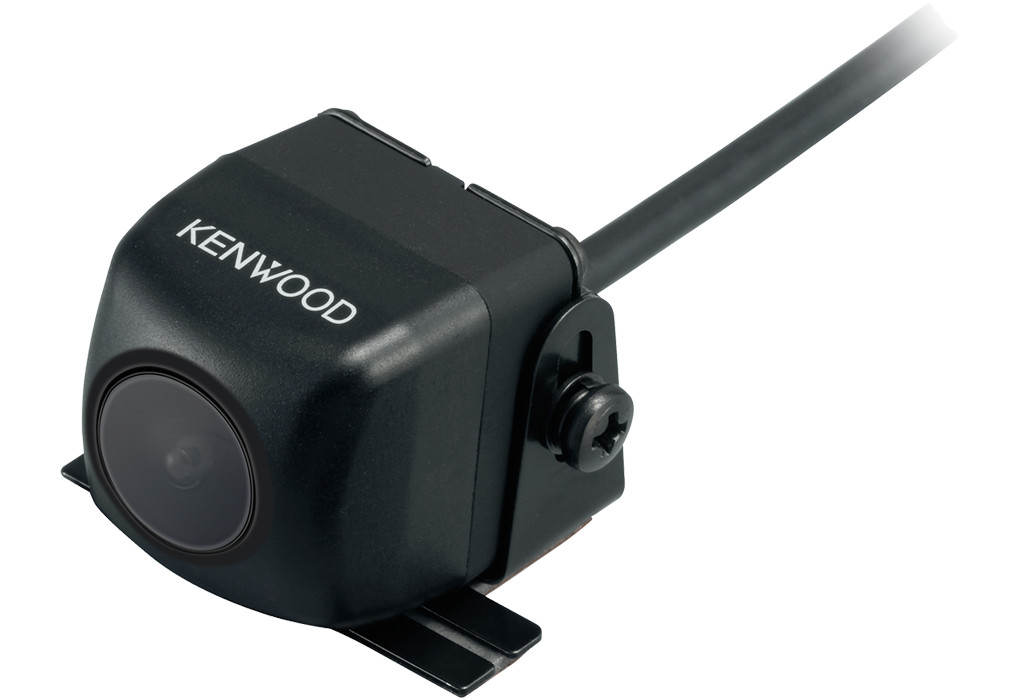

CMOS-130 Camera marsarier universala Kenwood

370,00 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU CMOS-130


Camera universala pentru mers inapoi


  • Senzor CMOS color 1/4″
  • 380.000 de pixeli
  • Semnal video NTSC (RCA)
  • Vedere panoramică în oglindă
  • Unitate rezistenta la apa (iP67)
  • Bază flexibilă pentru montaj
  • Vizualizare in unghi orizontal +/- 129°
  • Vizualizare în unghi vertical +/- 104°
  • Cablu conectare (DC+video): 0.7m
  • Dimensiuni (Lxhxl): 23.4 x 23.4 x 23.9mm


Camera Unit

Camera Type 1/4-inch colour CMOS sensor
Effective number of pixels roughly 380000
High sensitivity Pixels Yes
Output video wide angle mirror image
Waterproof chassis Yes
Mounting system Fexible mount base
Installation positions Rear
High voltage protection Yes
Wide angle lens Yes
Focal length f: 1.12mm, F value 2.2
Horizontal Angle view +/- 129°
Vertical Angle View +/- 104°
Illumination range approx. 0.9 to 100000 lux
Iris System Electronic
White balance Automatically
Scanning System Interlace
Synchronizing System Internal
Video output level 1Vpp, 75Ω
Video signal format NTSC (Mirror view)
Connection cable (DC+video) 0.7 m

General Specifications

Operating voltage 14.4V (9 ~ 16V Allowable)
Maximum Current Consumption 0.06A
Dimensions (WxHxD) 23.4 x 23.4 x 23.9mm
Weight 21 gr.
Instruction Manuals ENG/FRE/GER/DUT/ITA/SPA/POR


Bracket yes
Screws (Parker-type) Ø 2.5 x 10mm, 1 pieces
Grommet Yes
