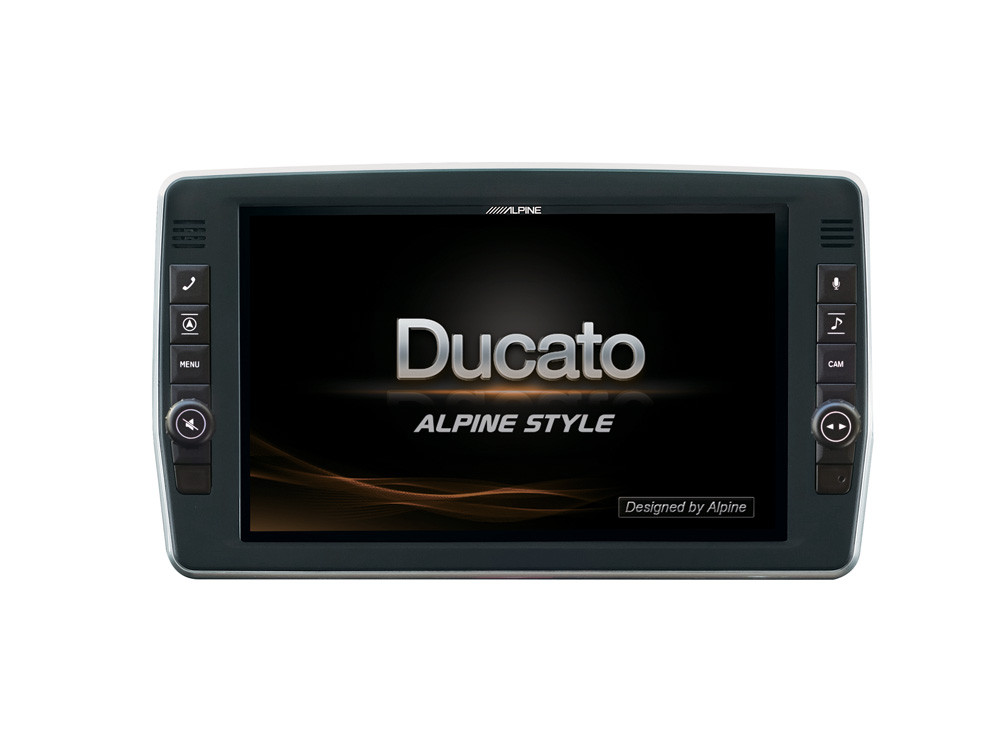

X903D-DU8S Sistem cu navigatie si ecran reglabil de 9" pentru Fiat Ducato 8, Alpine
Sistem Multimedia cu navigatie, ecran reglabil de 9″ pentru Fiat Ducato III ( Versiunea 8 2022 ), harti TomTom, compatibil Apple Car
Sistemul Navi X903D-DU8S va fi partenerul perfect pentru toate tururile și vacanțele dvs.
X903D-DU8S dispune de un ecran tactil uriaș de 9" cu funcție de rotire, care permite ca ecranul să fie îndreptat către șofer sau catre partenerul din dreapta. Acest lucru face foarte ușor să vedeți și să controlați hărțile de navigație și alte funcții de pe ambele scaune. Sistemul este conectat la electronica lui Ducato și poate fi controlat complet de la comenzile de pe volan.
Sistemul de navigație încorporat pentru autocaravană include hărți TomTom pentru 48 de țări și include caracteristici foarte utile, cum ar fi profile selectabile pentru autocaravană, o bază de date park4night, precum și o bază de date BordAtlas. Acum puteți alege dintre 3 profiluri diferite de caravana (mărime: S / M / L) sau puteți introduce dvs. manual măsurătorile și greutatea. Aceasta înseamnă că vor fi propuse numai rute potrivite pentru caravana dvs. specifică.
Distrați-vă pe drum cu o calitate excelentă a sunetului de la radio DAB+, Apple CarPlay, Android Auto, Bluetooth sau surse USB. Puteți actualiza în continuare X903D-DU8S cu un sistem de cameră pentru față, spate și lateral, pentru a face manevrarea vehiculului mai ușoară. X903D-DU8S este un uimitor sistem de navigație all-in-one high-end pentru Fiat Ducato 8, încărcat cu funcții pentru a fi însoțitorul perfect pe drum.

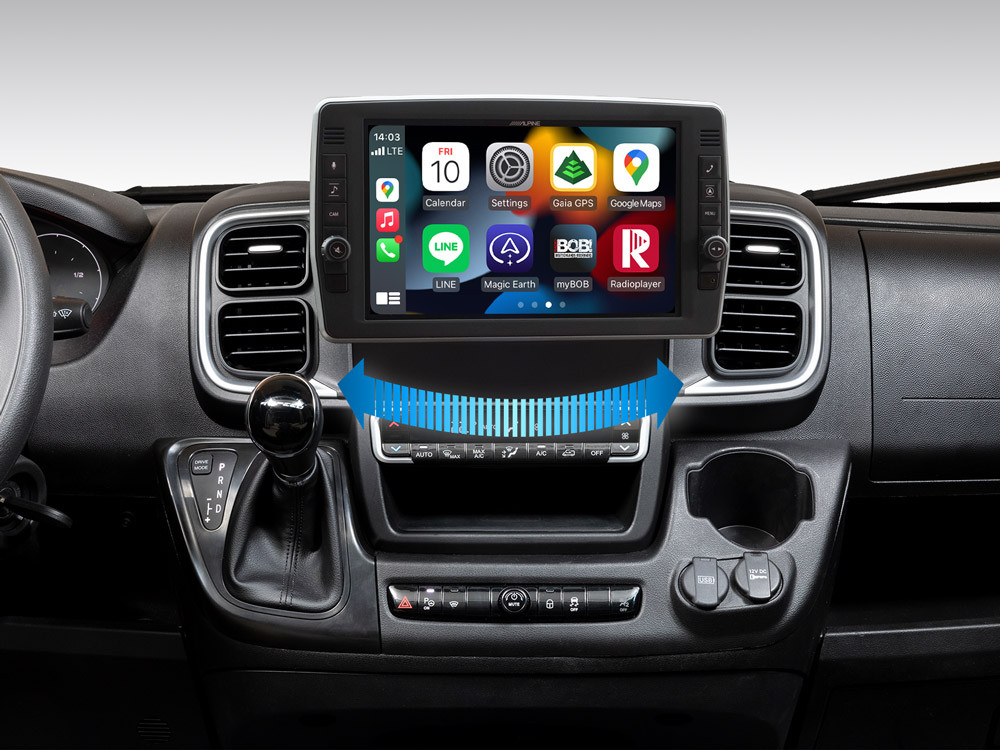

- X903D-DU8S with Swivel Design: Made for Fiat Ducato 8 - Alpine offers a tailor-made navigation system, that ties-in perfectly to the Ducat 8’s dashboard and electronics. All required components for installation are included to make the installation as easy as possible. The X903D-DU8S’s monitor can be turned towards the driver or co-driver. This simplifies destination input and improves display visibility even in direct sunlight.

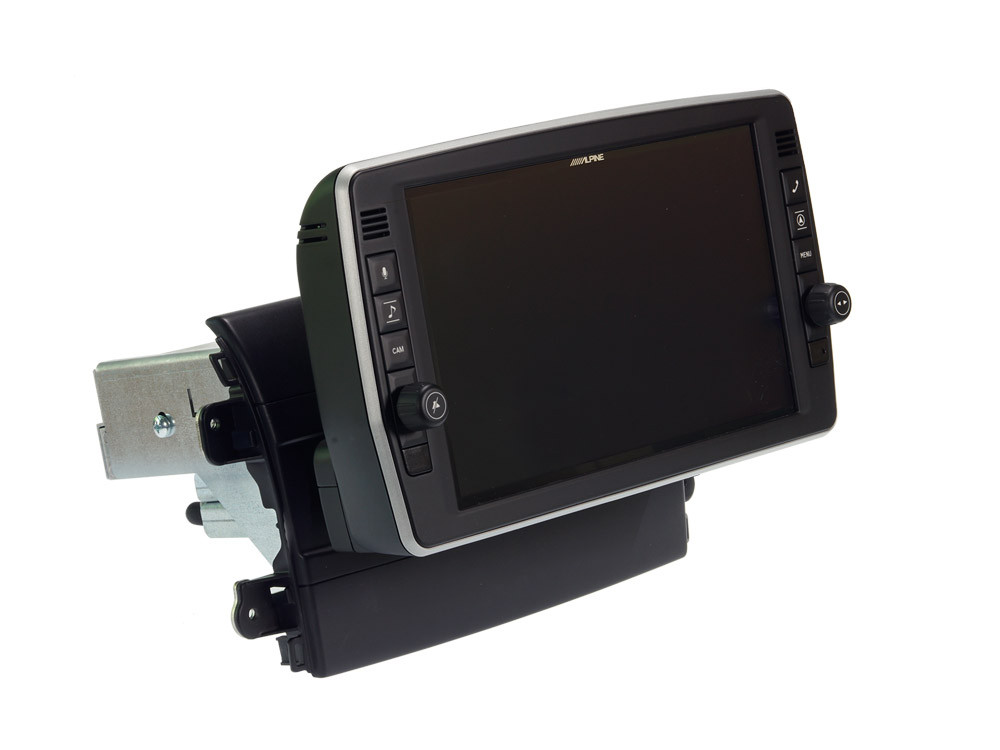

- Easy to Reach from the Driver’s Seat - Accessibility is an important factor especially on long trips when you often change radio stations or change navigation settings. The X903D-DU8S is designed in an offset configuration from the dash – bringing it closer to the driver to be easily reached without leaning forward.

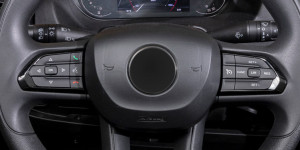

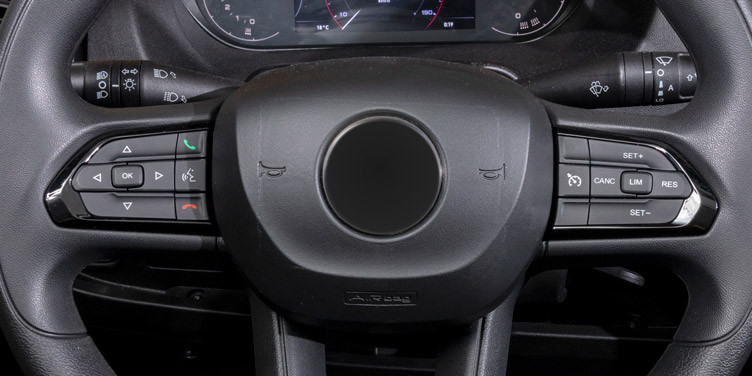

- Easy control from the steering wheel - If your Ducato is equipped with control buttons on the steering wheel, you can use them with the X903D-DU8S as well. The Alpine system is fully connected to the vehicle’s electronics and accepts all steering controls such as volume control, telephone, voice control and audio mute.

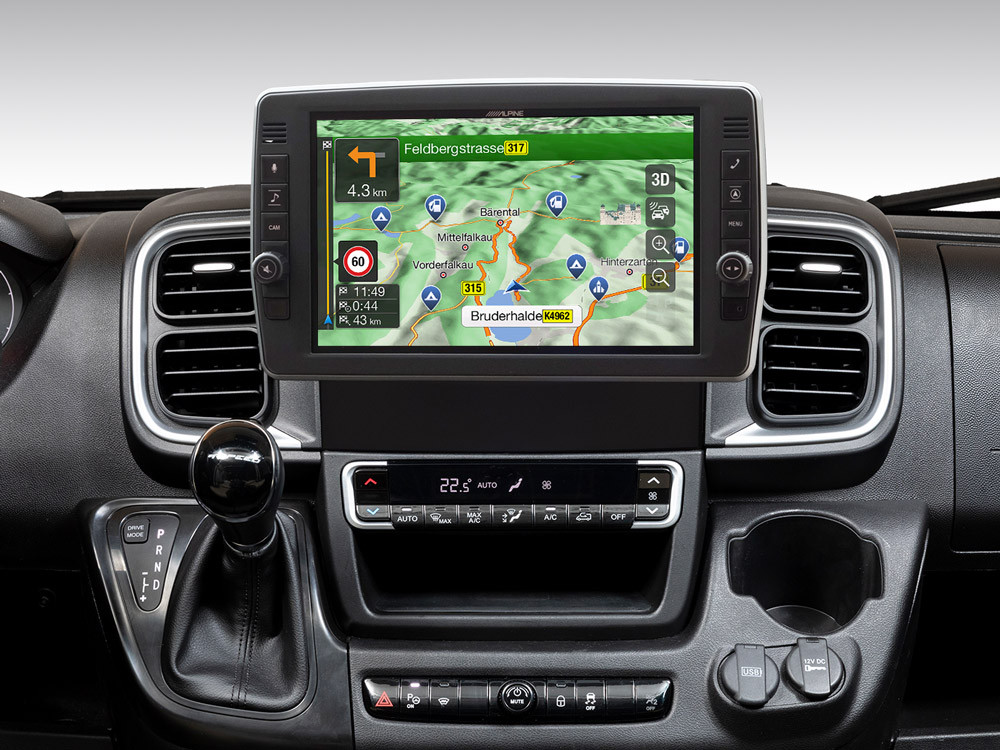

- Professional motorhome navigation - Your Alpine system comes wit pre-installed map data for 48 European countries. You can easily purchase additional countries and regions online to upgrade your database (incl. USA, Canada and many more). It features the latest iGo Primo nextgen navigation software and is compatible with both GPS and Glonass for highest location accuracy. The TomTom navigation maps provide free-of-charge updates for 3 years.
- Selectable motorhome profiles - You can choose between 3 different motorhome profiles (S / M / L) or create your own profile by manually entering vehicle length, height, width and weight. The Alpine system will take the measures and weight of your vehicle into account and propose only routes suitable for your vehicle.
- Built-in park4night database - The X903D-DU8S comes pre-installed with park4night. The extensive database offers over 120.000 camping sites across Europe and works fully offline on the go anywhere you are. You can search right on your Alpine screen for your next camping site by category, country or region - along your route or at a final destination. Icons give you detailed information about the opening hours and available services of each camping site (such as WiFi, laundry or waste-water disposal availability) and you can see the distance, user ratings, comments and even images to pick the right camping site for your needs.
- Pre-Flight Check - Most damages to motorhomes occur, because the vehicle was not fully prepared for the road. Alpine’s on-screen Pre-Flight Check can be fully customized to your vehicle and reminds you before you start driving, to ensure that the gas is shut off, all tables and doors are secured, satellite antennas are retracted, etc.
- Lane guidance / TMC Route Guidance - Lane Guidance lets the driver know which is the best lane to be in, while Dynamic TMC Route Guidance provides live traffic information for avoiding traffic jams and recalculates the route if necessary.
- Connect your smartphone - The X903D-DU8S is compatible with Apple CarPlay and Android Auto. This gives smartphone users an incredibly intuitive way to make calls, use navigation, listen to music and access messages with just a word or a touch. You can even enjoy Spotify, internet radio or podcasts while on the road for a truly connected experience.
- Built-in DAB+ digital radio - The built-in DAB/DAB+ tuner uses the most advanced digital technology to deliver radio reception with outstanding, noise-free sound quality. DAB also offers many other advantages over traditional FM radio: choose from a much wider range of radio stations and after the initial station scan easily select your desired channels from an alphabetic or genre list of available stations.

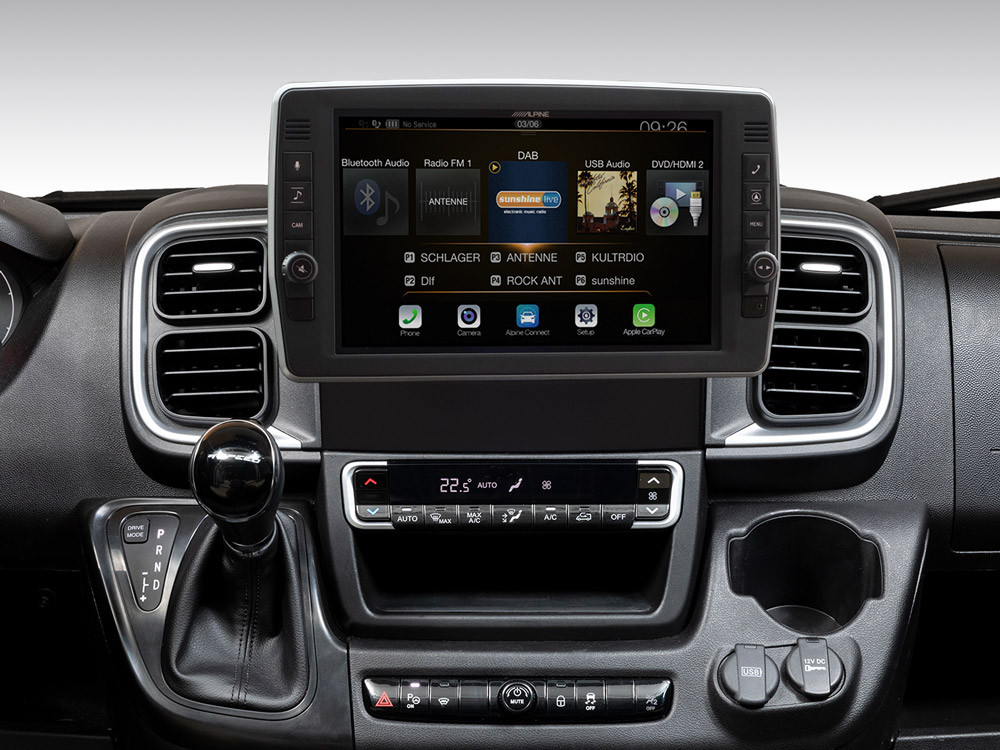

- One Look Display - Alpine’s innovative "One Look" split-screen technology allows you to view the navigation map and audio playback information at one glance. This eliminates the need to switch between different applications.
- Camera Mount for Fiat Ducato - The KIT-R1DUC camera mount uses the third brake light position of your Ducato III, Jumper II or Boxer II to easily install your Alpine HDR rear view camera. You do not even have to drill any hole in your motorhome wall to route the cable.
- Upgrade to an HDR camera system - You can connect a front and a read camera system to your X903D-DU8S to make reversing and maneuvering your motorhome much easier and safer. You can even equip a side camera (requires optionally available KCX-C250MC) to survey the side of your motorhome or use it as an under-floor camera to easier position the vehicle for grey-water release.
- Destinations by GEO coordinates - Many camping sites or sightseeing spots are away from major roads without any clear street address. By selecting destinations through GEO coordinates, you can reach any kind of destination even if there is no listed street nearby.
- LIN Bus Adapter to Retain Fiat Ducato Wireless Charger - If your Ducato is already equipped with an original Qi phone charger, you can continue to use it with your Alpine system. This requires the separately sold KWE-Qi-DU8 adapter.
- Memory Presets: FM: 24 / MW: 6 / LW: 6)
- Seek Mode: Local / DX Selection
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+ Tuner Built-in
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DAB Service Following
- RDS Fallback (where available)
- Service Preset: 18 Preset Memory
- Built-in BLUETOOTH® Module
- HFP (Hands-Free Profile) Compatible
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Advanced BLUETOOTH® Technology
- Connection: SSP (Simple Secure Pairing) Supported
- Menu Language Selection: 24 Languages
- Microphone integrated
- Map Coverage: 48 Countries (Western and Eastern Europe)
- Menu Language: 29 Languages
- Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
- Advanced Address Search
- Post Code Search
- Advanced POI Functions
- 7 Alternative Route Recommendation
- Advanced TMC Mode
- 3D maps with elevation mode
- 3D Motorway Junction View
- 3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse
USB Media Connection
- USB Connection
- Music and Video Playback: FLAC/ MP3/ WMA/ AAC/ AVI/ MP4/ MKV
- Bass Engine™ Pro
- Subwoofer Level Adjustment
- 4V PreOuts
- Equalizer: 10 selections
- 9-Band Parametric Equalizer
- 6 Channel Digital Time Correction
- Digital Crossover Setting
- Power Output: 4 x 50 W High Power Amplifier
- Display: 9′′ Capacitive WVGA High Resolution Display
- My Favourites Function
- 3 PreOuts (4 V, Front / Rear / Subwoofer) KTX-PRE1 Required (Sold separately)
- AUX-In: 1 A/V AUX Input (RCA)
- Steering Wheel Remote Control Function (including phone operation)
- Remote Control Ready
- Navigation Guidance Mix
- Camera Connection & Built-in Controls for Multi-View Cameras
- Camera Guide Line Adjustment
- Menu Languages: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
- Anti-theft security code
- HDMI Input / Output
- Engine Start-Stop unaffected
- Ready for optional DVD Player DVE-5300
Map & Database
- Online Map Update via alpine.naviextras.com
- Featuring TomTom Maps
- 3 Years free of charge map update (multiple updates possible)

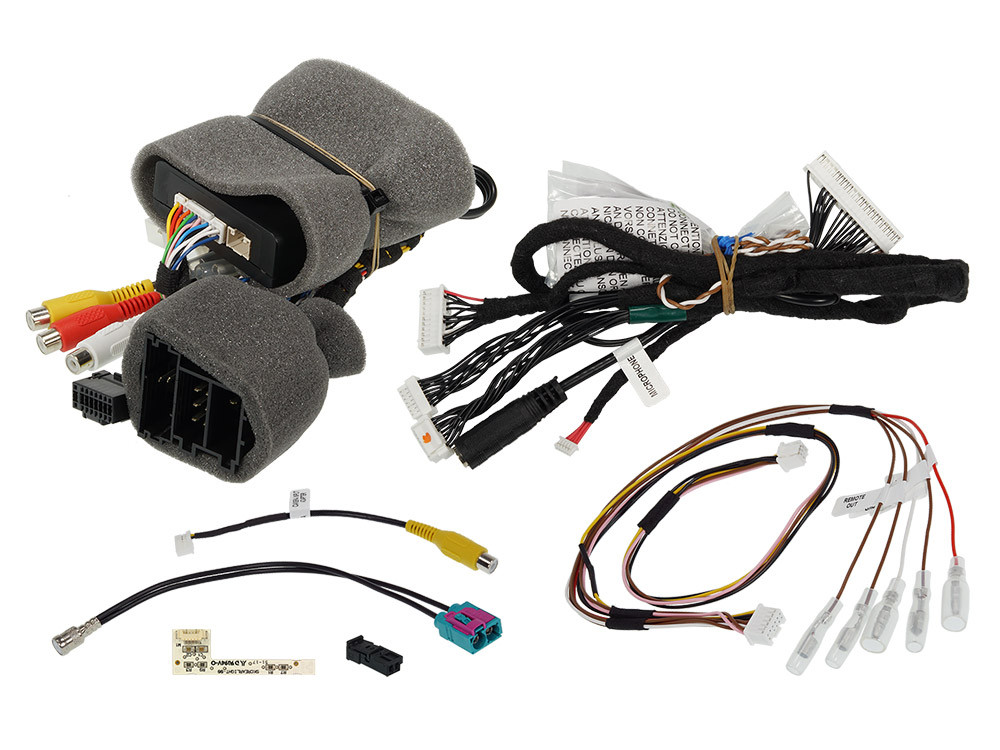

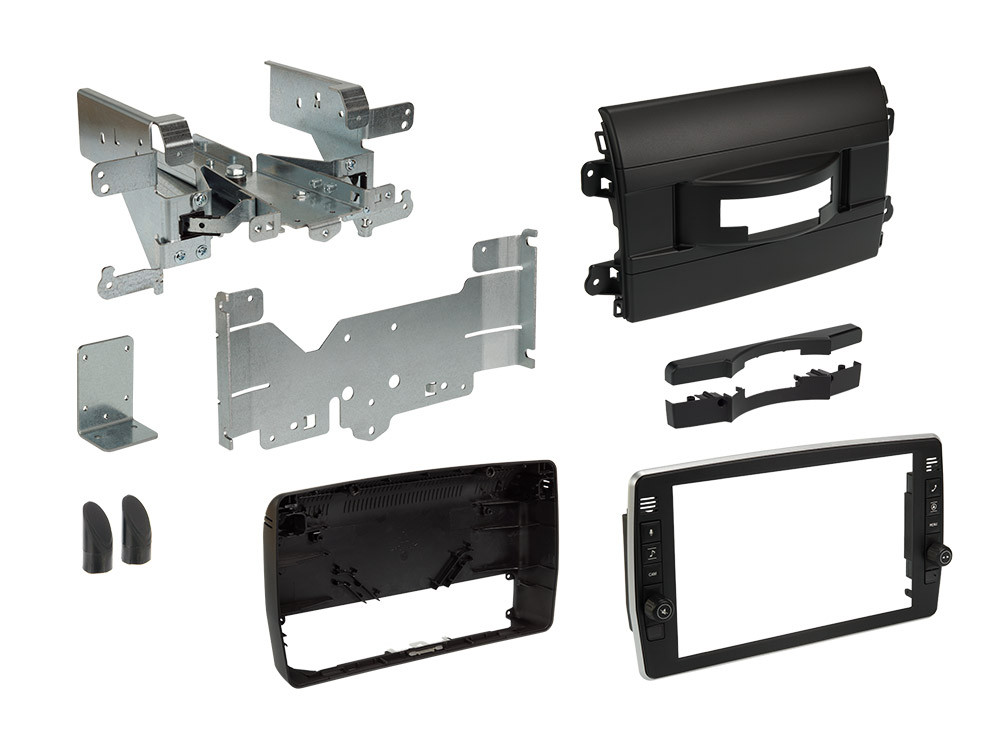

- Includes installation brackets, wiring harness and SWRC interface for complete installation.
- Screen Size: 9 inch Capacitive WVGA with swivel function (left / right)
- LCD Type: Transparent Type TN LCD
- Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Max Power Output Ratings
- Max Power Output: 4 x 50 W
- Tuning Range: 87.5 - 108.0 MHz
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- Tuning Range: 531 - 1,602 kHz
- Tuning Range: 153 - 281 kHz
- USB Requirements: USB 2.0
- Max. Power Consumption: 1,500 mA (CDP Support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32
- MP3 Decoding: MPEG-1/2 AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: ACC-LC format ′′.m4a′′ file
- Flac Decoding
- USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
- Number of Channels: 2-Channel (Stereo)
- BLUETOOTH® Version: Bluetooth V3.0+EDR
- Output Power: +4 dBm Max. (Power class 2)
- HFP: HFP (Hands Free Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP: A2DP (Advanced Audio Distribution Profile)
- Input Format 480p/VGA
- Output Format 480p
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 4 V / 10k ohms
- Maximum Mounting Angle: 30°
- X903D-DU8: Fits for Fiat Ducato 8
- Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
The Caravan and Camper Software considers following restrictions and limitations by calculating the route and also gives warnings whilst driving without calculated route in 40 countries*:
- General through traffic restrictions for trucks (i.e. environmental zones)
- Through traffic restrictions for all categories of dangerous goods
- (i.e. explosives, flammables)
- Turn and U-Turn restrictions for trucks
- Restrictions for trailers
- Limitations of length
- Limitations of width
- Limitations of height
- Limitations of weight
- Height and width limitations of tunnels and bridge pass throughs
- Maximum allowed weight of bridges
* Andorra, Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, United Kingdom
- the X903D-DU8S is only compatible with vehicles featuring radio preparation or open dash (no radio equipped).
