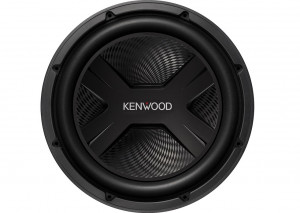

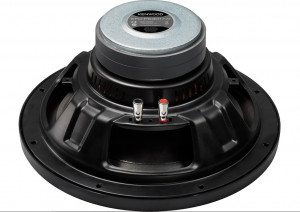

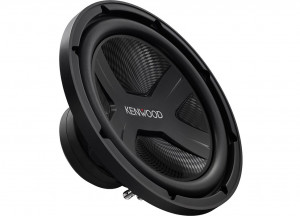

KFC-PS3017W Subwoofer auto Kenwood de 30cm (12"), 2000W

432,14 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU KFC-PS3017W
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0754 82 82 80 (Luni-Vineri: 09.00h-18.00h)

Descriere

Subwoofer de 30CM (12″), 400W RMS



  • Difuzor de bas de 30cm ( fara incinta )
  • Putere maxima: 2000W
  • Putere nominala: 400W
  • Impedanta: 4Ω


Caracteristici tehnice:

  • Diametru difuzor: 30 cm
  • Putere maxima: 2000W
  • Putere nominala: 400W
  • Tip Magnet: Ferita
  • Material Con difuzor: Con din Polipropilena (PP)
  • Grila de otel
  • Impedanta: 4Ω
  • Sensibilitate: 85dB/W/m
  • Raspuns in frecventa: 29Hz ~ 300Hz

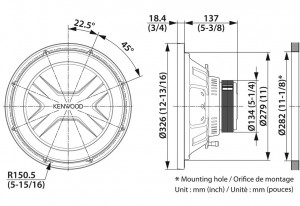

  • Dimensiuni difuzor ( Lxhxl ): 326 x 326 x 155.4 mm
  • Adancime montaj: 13.7 cm
  • Diametru gaura de montaj Ø: 28 cm
  • Greutate difuzor 4.2 kg



Speaker Features

Speaker Size 300mm
Oversized Dimension Yes
Speaker Cone Design Diamond-Array pattern
Magnet Type Ferrit
Voice-coil single, multi-layer voice coil
Terminals Push Type
Spider Stress controlled spider
Bottom-Yoke Fully closed bottom yoke
Heat dissipation technology Airflow control
Installation Capabillity Sealed / Ported

Speaker/woofer Specifications

Peak Input Power 2000W
Rated Input Power 400W
Woofer Cone material Polypropylene (PP) Cone
Center Cap Type x-motif cap
Speaker Basket Steel
Speaker Surround Foam
Spider Type Stress controlled Spider
Sensitivity 85dB/W/m
Frequency Response 29Hz ~ 300Hz
Speaker Impedance 4Ω
Dimensions (W x H x D) 326 x 326 x 155.4mm
Mounting Depth 137mm
Mouting Hole Diameter Ø 280mm
Speaker Weight 4200gr

Subwoofer Parameters

Nominal impedance (Z) 4Ω
DC resistance (Re) 3.7Ω
Resonant frequency (FSO) 24.4Hz
Mechanical Q factor (QMS) 6.79
Electrical Q factor (QES) 0.52
Total Q factor (QTS) 0.483
Voice coil inductance (LBM) 2.04mH
Voice coil diameter (d) 50mm
Force factor (BL) 12.9T/m
Peak excursion Xmax 5.9mm
Moving mass (MMS) 152gr.
Volume accoustic compliance (VAS) 104liter
Piston Area (SD) 0.0512m²
Displacement 1.2cc

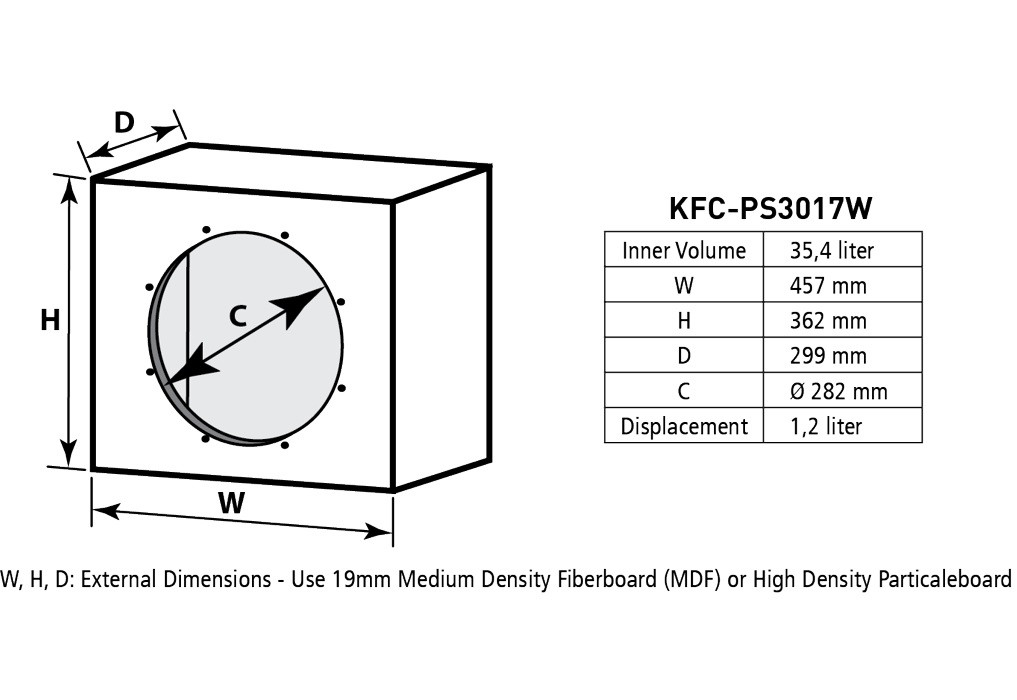

Sealed box volume 35.4liter
Sealed Box Dimensions 457 x 362 x 299mm ( 18mm thick MDF)(WxHxD)
Vented box volume 42.5liter
Vented Box Dimensions 590 x 362 x 394mm ( 18mm thick MDF)(WxHxD)
Port dimensions (labyrinth) (W x H x L) 35 x 324 x 736mm

Detalii

SKU
KFC-PS3017W
Categorii
Subwoofere
Brand
KENWOOD
Constructie
Fara incinta
Tip
Pasiv
Diametru
30 cm (12")
