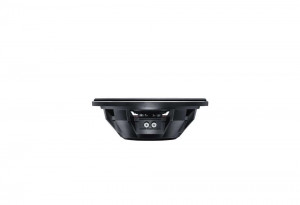

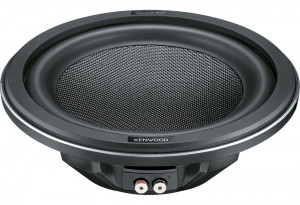

KFC-WPS1200F Subwoofer slim auto Kenwood de 30cm (12"), 1400W

720,00 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU KFC-WPS1200F
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0754 82 82 80 (Luni-Vineri: 09.00h-18.00h)

Descriere

Sumwoofer slim de 30cm (12″), 350W RMS



  • Difuzor de bas de 30cm ( fara incinta )
  • Putere maxima: 1400W
  • Putere nominala: 350W
  • Impedanta: 4Ω
  • Sensibilitate: 91dB/W/m
  • Raspuns in frecventa: 30Hz ~ 800Hz
  • Dimensiuni difuzor ( Lxhxl ): 325 x 325 x 121 mm
  • Adancime montaj: 10 cm
  • Diametru gaura de montaj Ø: 27.6 cm
  • Greutate difuzor 7 kg
  • Greutate totala: 8 kg
  • Greutate magnet: 1.37 kg



Key Features

300mm Carbon-Glass Fiber Honeycomb Cone Subwoofer
Super Linear Spider
Smooth Linear Surround
Heat transfer structure
Shallow Mount

Speaker Features

Speaker Type Subwoofer
Peak Input Power 1400W
Rated Input Power 350W
Speaker Size 300mm
Speaker Cone Design Carbon-Glass Fiber Honeycomb Cone
Magnet Type Ferrit
Terminals Silver-plated Push Type
Heat Transfer Motor Circuit Yes
Magnet Cover Aluminum Die-Cast Basket
Gasket Installation two-sided
Installation Capabillity Sealed/ Ported

Speaker/woofer Specifications

Peak Input Power 1400W
Maximum Input Power 700W
Rated Input Power 350W
Woofer Cone material Carbon-Glass Fiber Honeycomb Cone
Speaker Basket Aluminum Die-Cast
Speaker Surround Rubber
Spider Type Super Linear Spider
Sensitivity 91dB/W/m
Frequency Response 30Hz ~ 800Hz
Speaker Impedance 4Ω

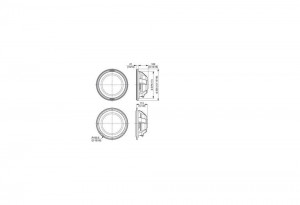

Dimensions (W x H x D) 325 x 325 x 121mm
Mounting Depth 100mm
Mouting Hole Diameter Ø 279mm
Speaker Weight 7000gr
Gross Weight 8000gr
Weight of Magnet 1370gr

Subwoofer Parameters

Nominal impedance (Z) 4Ω
DC resistance (Re) 3.2Ω
Resonant frequency (FSO) 24.8Hz
Mechanical Q factor (QMS) 2.897
Electrical Q factor (QES) 0.67
Total Q factor (QTS) 0.544
Voice coil inductance (LBM) 2.8mH
Voice coil diameter (d) 65mm
Force factor (BL) 12.93T/m
Peak excursion Xmax 8.5mm
Moving mass (MMS) 224gr.
Volume accoustic compliance (VAS) 62.685liter
Piston Area (SD) 0.049m²
Displacement 1740cc
Sealed box volume 22.6liter
Sealed Box Dimensions (trapezium shape) 773 x 362 x 107 x 172mm ( 21mm thick MDF)(WxHxD1xD2)
Vented box volume 22.6liter
Vented Box Dimensions (trapezium shape) 773 x 362 x 107 x 172mm ( 21mm thick MDF)(WxHxD1xD2)
Vented box port diameter/length Ø 76mm / 102mm

Accessories

Screws (Parker-type) Ø 5 x 30mm, 8 pieces
Badge 2 pieces
Gasket 1 piece(s)
Cushion 1 piece(s)

Detalii

SKU
KFC-WPS1200F
Categorii
Subwoofere
Brand
KENWOOD
Constructie
Fara incinta
Tip
Pasiv
Diametru
30 cm (12")
